Welding Machine
Product Detail
Features and Advantages:
1. Capable of various kinds of metal sheet with lower cost;
2. Stable and reliable system, easy operation;
3. Lower cost compared with other equipment;
4. High efficiency, used for welding the stainless steel, carbon steel and other metals;
5. Guaranteed stability and reliability.
Technical Parameters:
Technical Items | Parameters |
Applicable Material | Metal Sheet |
Working Area | W elding the stainless steel, carbon steel and other metals |
Welding Thickness | 0.2-1.2mm |
Welding Effective Length | 1000/1500/1800mm |
Control System | Automatic/Manual/Electrical |
Power Supply | 3-phase 380V/50Hz/20KVA |
Machine Dimension(L*W*H) | 3.5*1.1*1.7m 3.6*1.1*1.7m 2*0.75*1.8m 2*1.1*1.8m 2.3*0.85*2.8m 2.5*0.75*1.8m |
Remark | Welding Machine Hydraulic automatic necking machine Gantry auto straight seam argon welder Open type straight seam automatic argon welder Double-head Straight seam welder for solar collector Seam welder for water tower Straight seam welder Argon straight and circular seam welder Auto circular seam argon welder Circular seam pulsating welder Wash basin seam welding machine Circular seam welder Spot Welder Double-head spot welder |
Welding Machine

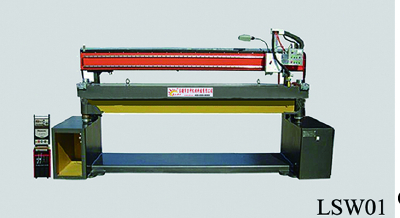

Gantry auto straight seam argon welder
This equipment can do straight seam welding for stainless steel, carbon steel, copper, titanium, aluminum and other metal materials. No deformation, no interganual corrosion, one-side welding to form, good welding quality, high degree of automation, convenient operation. It can be used in producing stainless steel products, electric water heater, inner&outer of solar water heater, and so on. It can weld thickness of 0.2mm to 8mm and the welding speed can be continuous stepless adjustable. The welding effective length is2M and dimension of machine is 3.5*1.1*1.7M.
Open type straight seam automatic argon welder
Open type argon welder can weld straight seam for stainless steel, carbon steel and other metals.There is no deformation, no intergranual corrosion and this machine can weld in one side and form in two sides. The quality of welding seam is excellent and the machine is easy to operate. It can weld thickness of 0.6-8mm and the welding speed can be continuous stepless adjustable. It is especially suitable for the welding of pressurized, thickening, big diameter water tanks. The welding effective length is 3000mm and dimension of machine is 3.6*1.1*1.7M.
Double-head Straight seam welder for solar collector
This equipment is mainly used for the straight seam welding of solar collector and can weld minisize, square and round shape within 6mm.Meantime, it has the function of spot welding and is a kind of multi-functions welder. It can weld carbon steel, stainless steel, galvanized materials with fast speed and high precision. The welding effective length is 1500mm, power is 50-150KW, thickness is from 0.1 to 1.2mm.The dimension of machine is 2*1.1*1.8M.
Seam welder for water tower
This equipment is mainly used for the straight seam welding of stainless steel round and square water tower. The welding is firm with no deformation. It can also be used for circular welding and spot welding of carbon steel, stainless steel, galvanized materials in fast speed and high precision. The welding effective length is 1500mm, power is 50-150KW, thickness is from 0.2 to 1.2mm. The dimension of machine is 2.3*0.85*2.8M.
Straight seam welder
This equipment is mainly used for the straight and circular welding of inner& outer of solar water heater, meantime it has function of spot welding and is kind of multi-function water tank welder.It can weld carbon steel, stainless steel, galvanized materials with fast speed and high precision and no destroy. The welding effective length is 1800mm, power is 50-150kw,thickness is from 0.2 to 1.2mm.The dimension of machine is 2.5*0.75*1.8M.
Argon straight and circular seam welder
This machine adopts four-axis cnc welding and the motor has X,Y,Z axis straight line motion and R axis rotational motion. It can reach straight and curvilinear motions to finish kinds of welding. The equipment is composed of gantry welding gun bracket and jip(fixture can be homemade or custom).The dimension of machine is 3.5*1.2*1.8M.
Auto circular seam argon welder
This equipment is used for the welding of pressure-bearing equipments, stainless steel tank and others. With automatic feeding and resetting, stable and reliable operation, firm and beautiful welding, it can weld carbon steel, stainless steel, galvanized materials in fast speed and high precision. The welding effective length is 2000mm, thickness is from 0.2 to 4mm.The dimension of machine is 3.5*1.1*1.7M.
Circular seam pulsating welder
This welder is mainly used for the circular seam welding of solar water heater and stainless steel water tower. It has the advantages of easy operation, high efficiency, long service life, stable welding quality, and good looking. It can work in one head or two heads and can weld carbon steel, stainless steel, galvanized materials with high precision and no destroy to materials. The power is 50-150KW, welding thickness of 0.2-1.2mm.The welding effective length is 1.5M.The dimension of machine is 2*1.1*1.8M.
Wash basin seam welding machine
Wash basin welding machine has high-strength structure of machine body. It has longitudinal welding & horizontal welding and is suitable for kinds of welding of products. The welding wheel is actuated by variable-speed motor. With large range of speed adjusting and stable speed, the welding wheel can be sole-wheel driving or dual-wheel driving. The electrode holder of wheel using special structure can guarantee large current and low power loss, and increase the service life.
Circular seam welder
This welder can do seam welding on stainless and carbon steel. The time of welding, the current, the speed of welding and the time of pressing can all be adjustable. This equipment can control the time by itself and has the function of “automatically stop welding”. The power is 50-150KW, can weld thickness of 0.2-1.2mm.The dimension of machine is 1.1*0.8*1.7M.
Spot Welder
Double-head spot welder
This equipment is double-head spot welding in orbit type pneumatic control and mainly used for spot welding of body and end covers of stainless steel water tower. It adopts advanced technology to keep uniform stress and firm welding. The power is 50-150kw, welding thickness of 0.2-1.2mm.The effective length is 1.5M and the dimension of machine is 2*1.1*1.7M.
Manufacturing Process:
The main steps to produce a high quality Machine
Products Certification:
Packaging & Shipping
Packing
•usually nude packing •wood case for foaming machine, mold, cnc punch press, etc.
Shipping
•by sea(machinery, big qty accessories for production) •by express(small accessories) •by air(emergency stuff)
Payment Terms
•100% in advance for small order •30% in advance, balance before delivery or B/L copy for large order
Delivery Time
7-30 working days (depends on the goods and qty).
After-sale Service:
1.Technical support online service provided.
2.Technical files service provided.
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
