Tenon-folding Machine

Product Detail

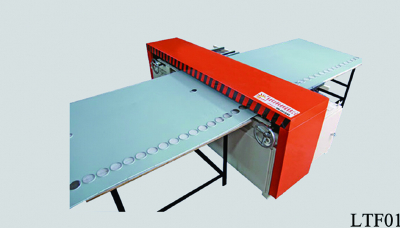

Automatic tenon-folding machine

Auto tenon-folding machine is mainly used for folding the straight seam. The width can be adjustable and the length is no limit. It can fold one side or two sides at one time, also can fold the sheet or bars at one time. It also can fold in C type for one side and fold J type for another side at one time. It has efficiency to save the labors and the folding edge is more beautiful. The power is 1.5KW and can fold thickness of 0.2-1.2mm plates. The dimension of machine is 2.5*1.1*1.5M.

Manual tenon-folding machine

Manual tenon-folding machine is mainly used for folding the straight seam. It is dedicated device for biting and molding of solar water heater and thin ventilation pipes. The effective working length is 2800mm and can fold thickness within 0.6mm. The dimension of machine is 2.85*0.7*1.3M.

Electrical tenon-folding machine

Electrical tenon-folding machine is mainly used for folding the straight seam. The width can be adjustable and the length is no limit. It is good looking, low cost and easy to move. The width of folding tenon: 6-8mm. The power is 1.5KW and can fold thickness of 0.2-1.2mm sheets. The dimension of machine is 1.2*0.8*1.4M.

Manufacturing Process

Main steps to produce a high quality Machine

Products Certification:

Packaging & Shipping

Packing

•usually nude packing •wood case for foaming machine, mold, cnc punch press, etc.

Shipping

•by sea(machinery, big qty accessories for production) •by express(small accessories) •by air(emergency stuff)

Payment Terms

•100% in advance for small order •30% in advance, balance before delivery or B/L copy for large order

Delivery Time

7-30 working days (depends on the goods and qty).

After-sale Service:

1.Technical support online service provided.

2.Technical files service provided.

3.On-site training service provided

4.Spare parts replacement and repair service provided.
