【 Shrinking Machine 】

Product Detail

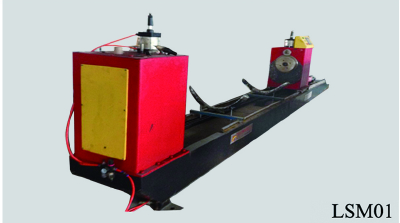

Automatic shrinking machine LSM01

This is the taper necking and tendon pressing equipment for the outer of solar water heater. Adopting guide rail, chain, and cylinder, the shrinking is uniform with high strength and fast speed. It can process different diameter outer tanks and also tendon press at the same time. It can process kinds of materials, such as the stainless steel, super glum, color sheets and others, no need to change the moulds. The effective working length is 3000mm and the power is 1.5KW, can

process thickness of 0.2-1.2mm sheets. The dimension of machine is 4.2*1.1*1.5m.

Double head shrinking machine LSM02

This is the taper necking and tendon pressing equipment for the outer of solar water heater.

It also can work on outer in different materials and diameters. This machine can be used widely in single or double head, in manual or pneumatic with high efficiency and advanced technology.

The effective working length is 3000mm, the power is0.75kw, can process thickness of 0.2-1.2mm sheets. The dimension of machine is 3.5*0.8*1.2m.

Single head shrinking machine LSM03

This is the taper necking and tendon pressing equipment for the outer of solar water heater. Adopting single head gear bite, the shrinking is uniform with high strength and fast speed.

It can process thickness different diameter outer tanks and also tendon press at the same time. The power is 0.75kw, can process thickness of 0.2-1.2mm sheets. The dimension of machine is 3.5*0.8*1.5m.

Hydraulic automatic necking machine LSM04

Hydraulic auto necking machine is used for the shrinking of pressure vessel and solar water heater. No need to change the die and easy to shrink with high efficiency. It can orientate automatically and form at one time with high precision. Advanced pneumatic and hydraulic control system can make the machine reliable to operate.

Manufacturing Process

  Main steps to produce a high quality  Machine

 Products Certification:

  Packaging & Shipping

   Packing

 •usually nude packing           •wood case for foaming machine, mold, cnc punch press, etc.

  Shipping

  •by sea(machinery, big qty accessories for production)   •by express(small accessories)    •by air(emergency stuff)

 Payment Terms

 •100% in advance for small order      •30% in advance, balance before delivery or B/L copy for large order

   Delivery Time

  7-30 working days (depends on the goods and qty).

 After-sale Service:

 1.Technical support online service provided.

 2.Technical files service provided.

 3.On-site training service provided

 4.Spare parts replacement and repair service provided.
